NRS Frame Anchor System with 2:1 - Standard Mast

Product Details

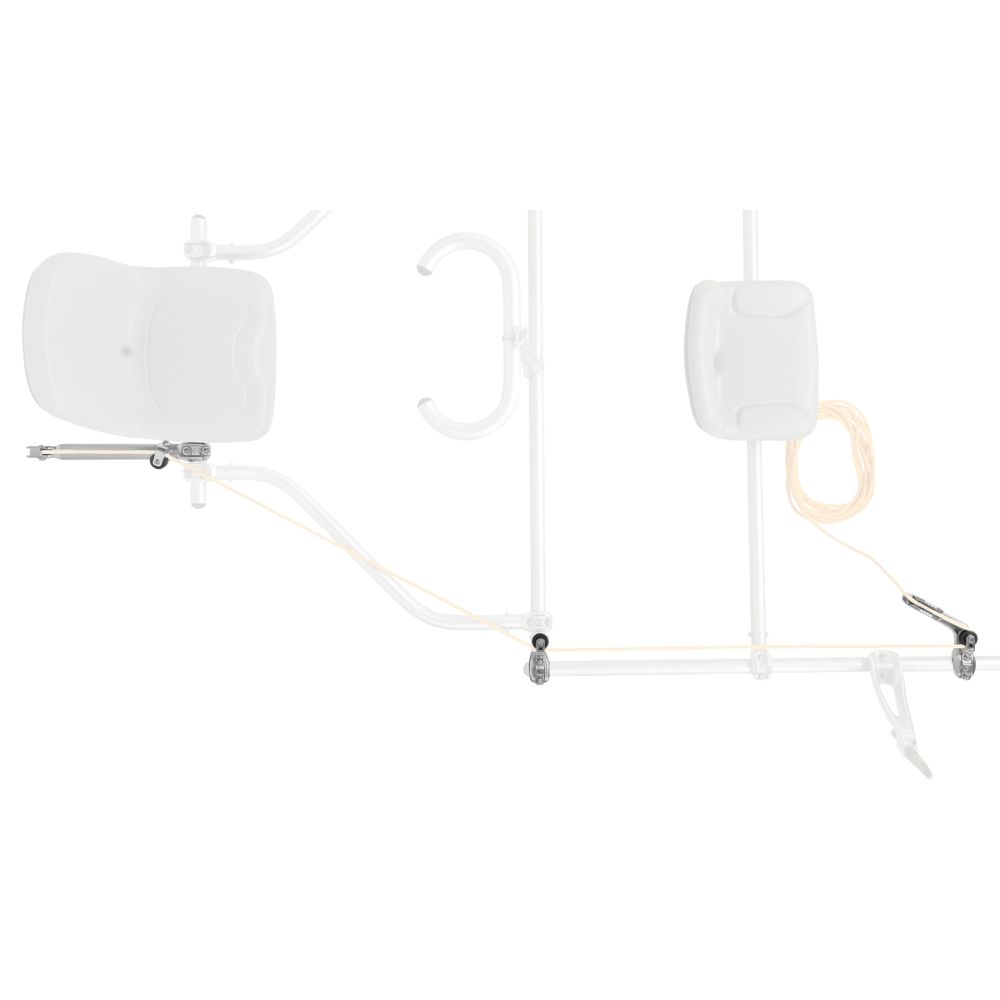

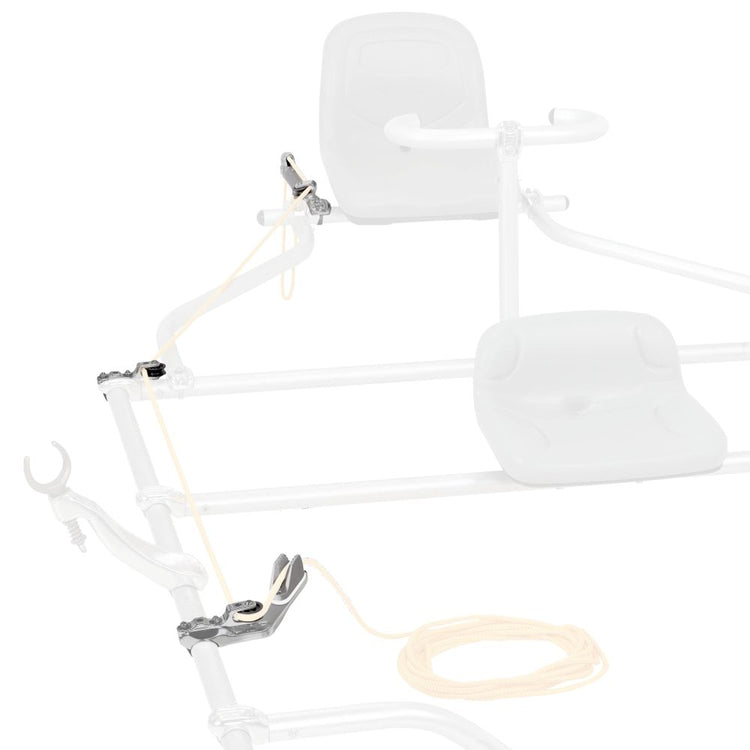

Three main components—a remote bracket with jam cleat, stern pulley, and intermediate pulley—create a 2:1 mechanical advantage, reducing the effort needed to raise or lower your anchor.

The stern pulley on the mast is slotted for adjustable angle settings depending on the kick of your craft. It's preset for maximum kick but can be fine-tuned by loosening the bolt and adjusting as needed.

Includes both standard and oversized U-bolts with nuts and washers for compatibility with various LoPro™ styles.

The 31" long mast is ideal for use with the Dodger Stern Seat Mount, offering sufficient reach to clear the stern of larger rafts like the Otter Fishing Dodger XL.

Compatible with both older cast aluminum and newer forged LoPro™ fittings. Use the oversized U-bolt for forged fittings and the standard U-bolt for cast LoPros.

The intermediate pulley nests cleanly on top of forged LoPros. For cast versions, simply U-bolt it to the siderail.

Rope and anchor sold separately. We recommend 3/8″ double braided nylon anchor rope for optimal performance.

Refer to the included instructions for full assembly and mounting steps on your watercraft.

Specifications

Mast Length: 31″ (Long Mast)

Construction: Forged LoPro™ Anchor System with Hot-Forged Aluminum Mast

Control System: Jam Cleat with Remote Pulley

Recommended Rope: 3/8″ Double Braided Nylon (not included)

Anchor Compatible: Standard river anchors (sold separately)

Compatibility: Works with NRS raft frames and cataraft yokes

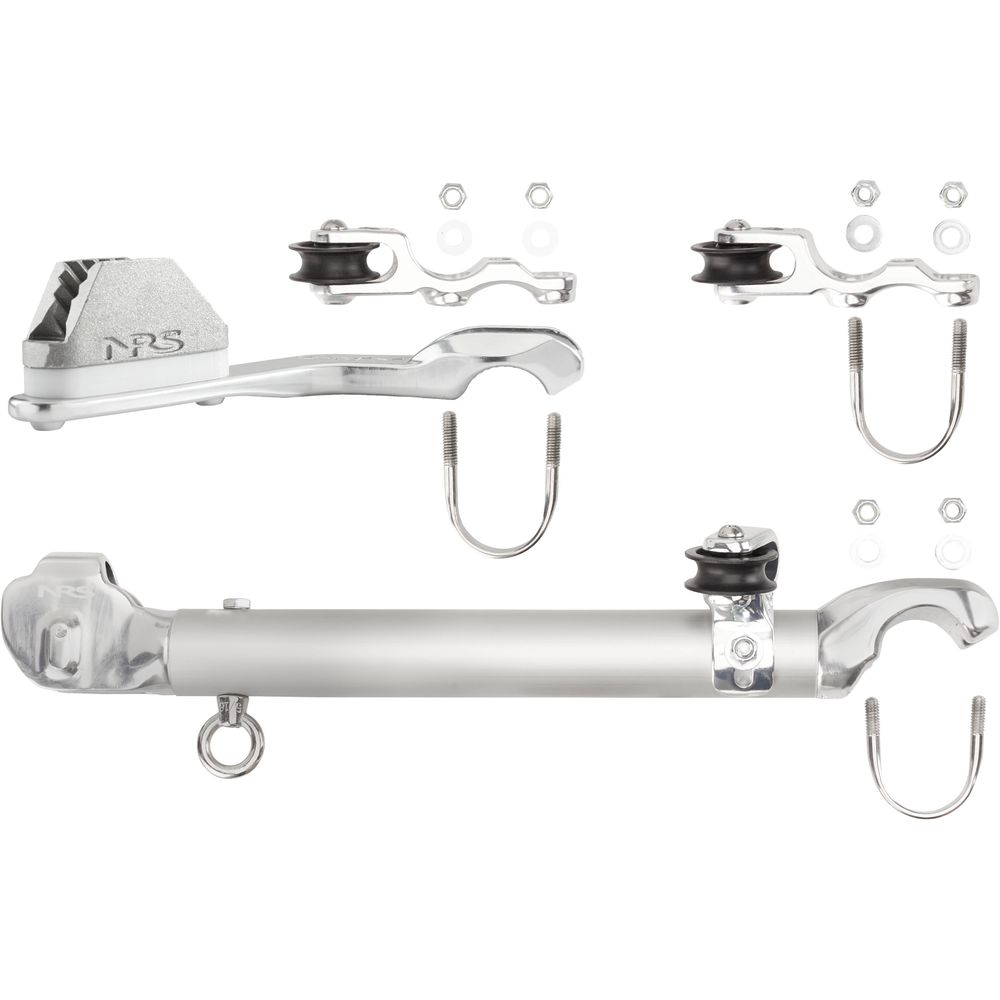

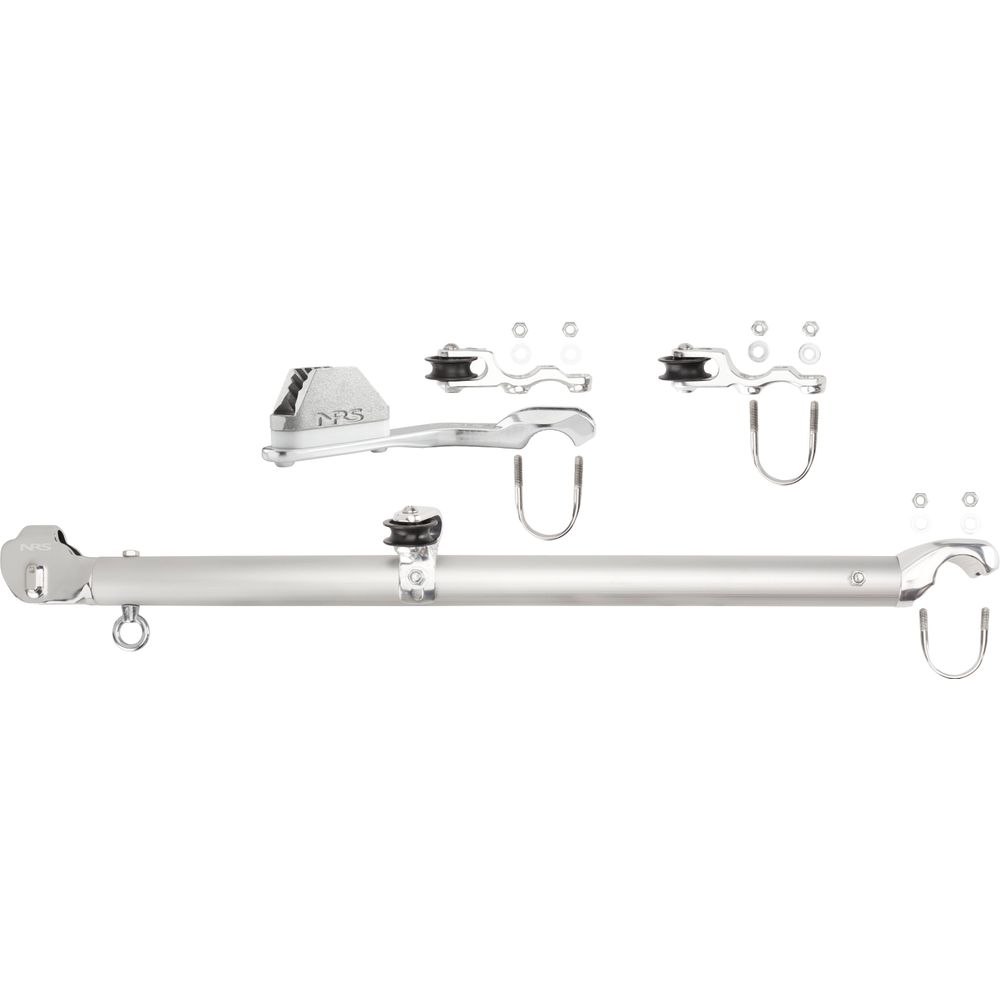

Included Components

1 – Anchor Control System with Rope Jam Cleat

2 – Intermediate Pulleys

1 – Anchor Mast

1 – Standard U-bolt with nuts and washers

2 – Oversized U-bolts with nuts and washers

Frame Fit Reference (Dimensions in Inches)

Long Mast: A: 26″   B: 13 3/4″   C: 1″   D: 31″

Standard Mast: A: 12″   B: 13 3/4″   C: 1″   D: 17″
